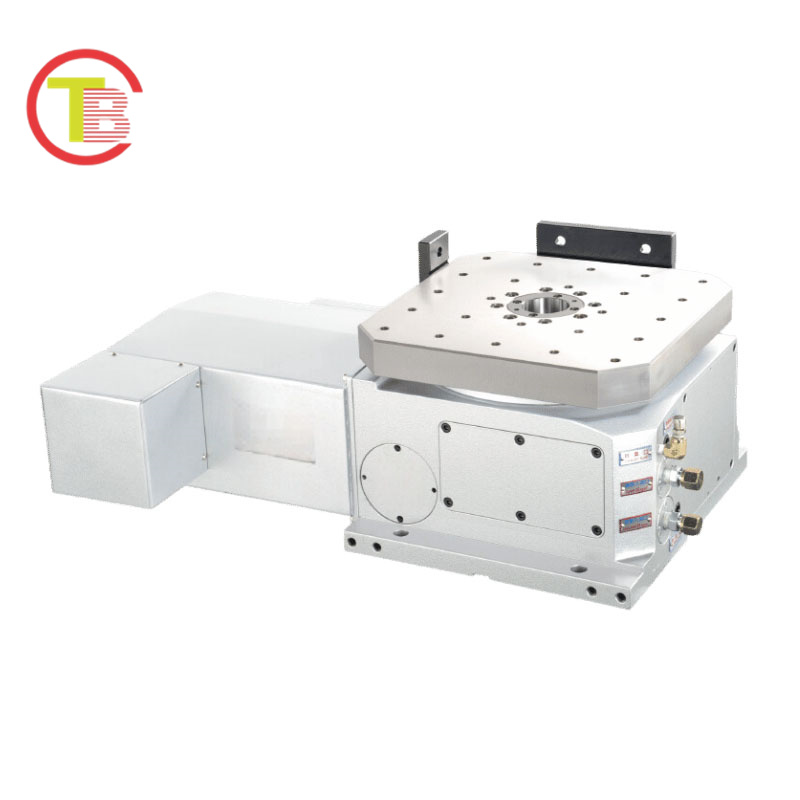

| Item | Data |
| Application | Vertical or Horizontal |
| Installation Mode | Add-on |
| Table diameter(mm) | ∅320 |
| Inner diameter of mandrel sleeve(mm) | ∅80H7 |
| Diameter of center through hole(mm) | ∅80 |
| Center height (Vertical)(mm) | 210 |
| Table height (Horizontal)(mm) | 250 |
| Table T-slot width(mm) | 14H7 |
| Guide block width(mm) | 18H7 |
| Transmission Mechanisms | Worm & Worm Gear |
| Min. increment(deg.) | 1 or 5 |
| Indexing precision(sec.) | ±5 |
| Repeatability(sec.) | ±1 |
| Clamping system (MPa / kgf/cm²) | Hirth coupling Hydraulic (3.5 / 35) |
| Clamping torque(N·m / kgf·m) | 3924 / 400 |
| Servo motor model(FANUC)(Straight shaft without key) | βiS22 |
| Servo motor model(MITSUBISHI) | HG-204 |
| Speed reduction ratio | 1:20 |
| Max. rotation rate of table(min⁻¹) | 25 |
| Allowable inertia load capacity (vertical)(kg·m²) | 4.5 |
| Allowable workpiece load (Vertical)(kg) | 175 |
| Allowable workpiece load (with support table)(kg) | 350 |
| Allowable workpiece load (Horizontal)(kg) | 350 |
| Allowable thrust load (with rotary table clamping) F (N / kgf) | 19620 / 2000 |
| (Axial) *1 Allowable thrust load (with rotary table clamping) Fx (N·m / kgf·m) | 24525 / 2500 |
| (Radial) *2 Allowable thrust load (with rotary table clamping) Fx (N·m / kgf·m) | 3924 / 400 |
| Net weight (servo motor excluded)(kg) | 210 |
| *1 | The structural limit value, while the actual operating speed will vary depending on the motor. |
