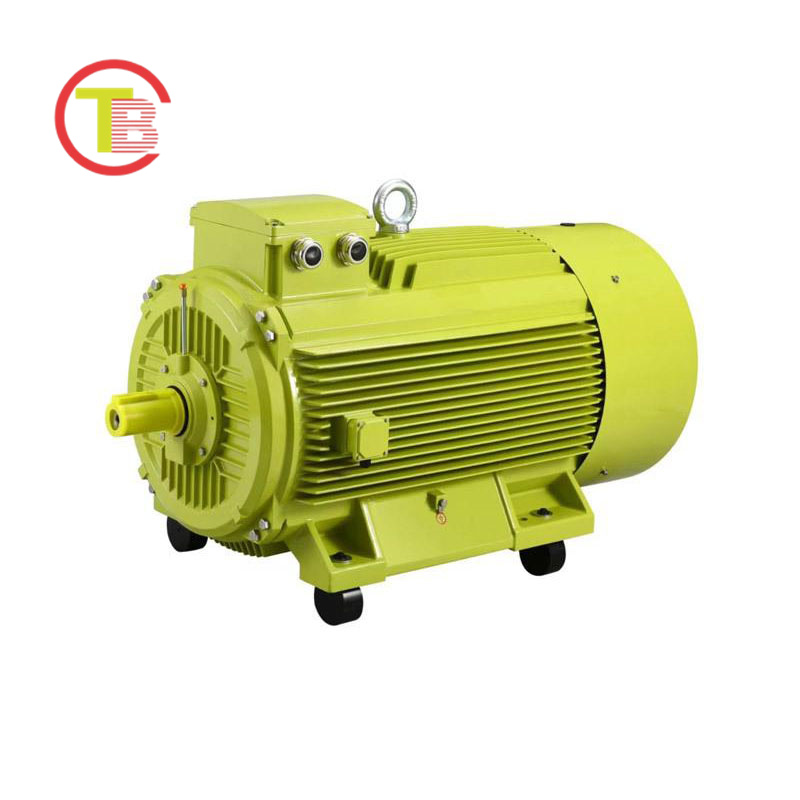

Asynchronous induction motor YE4

Categories :
Contact Now
  • Description
Type Ratod
power		 Rated
voitage		 Fated
current		 Ranted speed Efticiency Assistance factor Torque Rated Current Rated Torque Rated torque Noise Welght
kw V A r/min % % Tst/Tn Ist/n Tmax/Tn   N.m dB(A) Kg
Synchronous Speed 3000r/min
YE4-80M1-2 0.75 380 1.6 2880 83.5 0.83 22 8.5 23 2.4   62 19
YE4-8DM2-2 1.1 380 2.4 2850 85.2 0.83 22 8.5 23 3.5   62 20
YE4-905-2 1.5 380 3.1 2890 8.5 0.85 22 9.0 2.3 4.B   67 25
YE4-90L-2 2.2 380 4.4 2890 88.D 0.86 22 9.0 2.3 7.0   67 26
YE4-100L2 3 380 5.9 2910 89.1 0.87 22 95 2.3 9.6   74 36
YE4-112M-2 4 380 7.7 2910 90.0 0.88 22 9.5 23 12.8   77 48
YE4-13251-2 5.5 380 10.4 2945 90.9 0.88 20 9.5 23 17.5   79 63
YE4-13252-2 75 380 14.0 2940 91.7 0.89 20 9.5 23 239   79 67
YE4-160M1-2 11 380 20.3 2950 92.6 0.89 20 9.5 2.3 35.0   81 125
YE4-160M2-2 15 380 27.4 2950 93.3 0.89 20 9.5 2.3 478   81 138
F4-160L-2 18.5 380 33.7 2950 93.7 0.89 20 95 23 58.9   81 162
YE4-180M-2 22 380 40.0 2965 94.0 0.89 20 9.5 2.3 70.0   83 170
E4-200L1-2 30 380 54.2 2970 94.5 0.89 20 9.0 23 95.5   84 235
YE4-200L2-2 37 380 66.6 2975 94.8 0.89 20 9.0 2.3 1178   84 260
YE4-225M-2 45 380 80.9 2975 95.0 0.89 20 9.0 23 143.3   86 330
YE4-250M-2 55 380 98.5 2950 95.3 0.89 20 9.0 23 175.1   89 410
YE4-2805-2 75 380 134 290 95.6 0.89 1.8 8.5 2.3 2388   91 466
YE4-250M-2 90 380 160 2950 95.8 0.89 18 8.5 2.3 286.5   91 559
YE4-250L-2 110 380 196 2975 96.0 0.89 18 8.5 2.3 350.2   92 660
YE4-3155-2 110 380 196 2975 96.0 0.89 1.8 8.5 23 350.2   92 895
YE4-315M-2 132 380 234 2975 96.2 0.89 1.8 8.5 23 420.2   92 975
YE4-315L1-2 160 380 284 2975 963 0.89 1.8 8.5 22 509.3   92 1040
YF4-315L2-2 185 380 328 2975 964 0.89 18 85 22 588.9   92 1090
YE4-315L3-2 200 380 354 2975 96.5 0.89 1.8 8.5 22 636.7   92 1090
YE4-315L4-2 220 380 385 2955 96.5 0.90 1.6 8.5 22 700.3   100 1190
YE4-355M1-2 220 380 385 2955 96.5 0.90 16 8.5 22 700.3   100 1600
YE4-355M2-2 250 380 433 2985 95.5 0.91 16 8.5 22 795.8   100 1670
YE4-.355L1-2 280 380 484 2985 96.5 0.91 16 85 2.2 891.3   100 1790
YE4-355L2-2 315 380 545 2985 96.5 0.91 16 8.5 22 1003   160 1820
YE4-355L3-2 355 380 621 2955 965.5 0.90 0.9 8.6 18 1130   100 1860
